AceChemPack Ceramic Random Packing
-

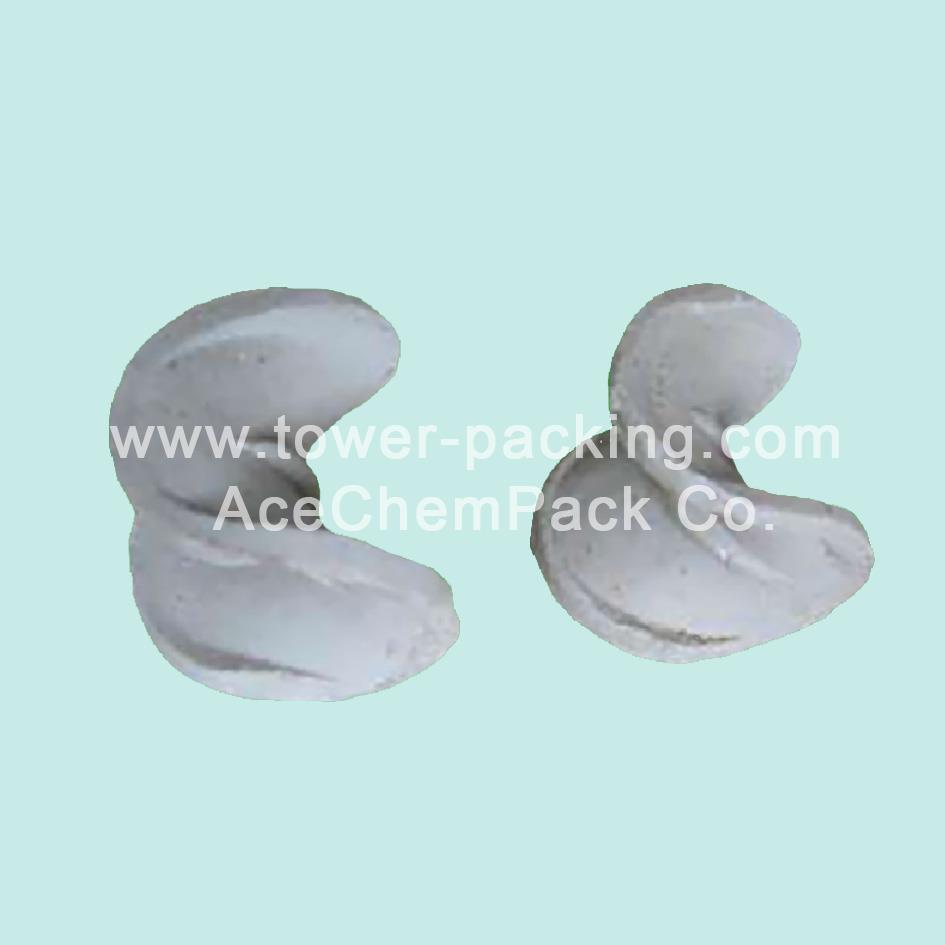

Ceramic Super Intalox Saddle Ring
¥ 0.00Buy now
-

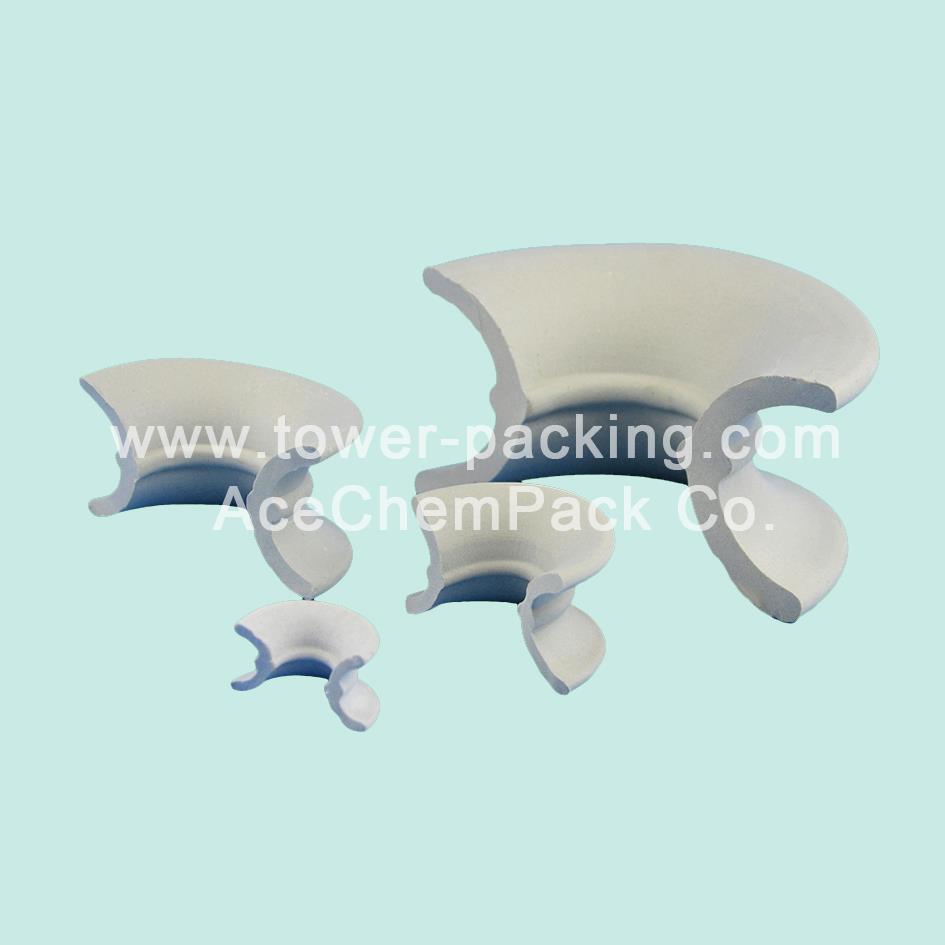

Ceramic Intalox Saddle Ring
¥ 0.00Buy now
-

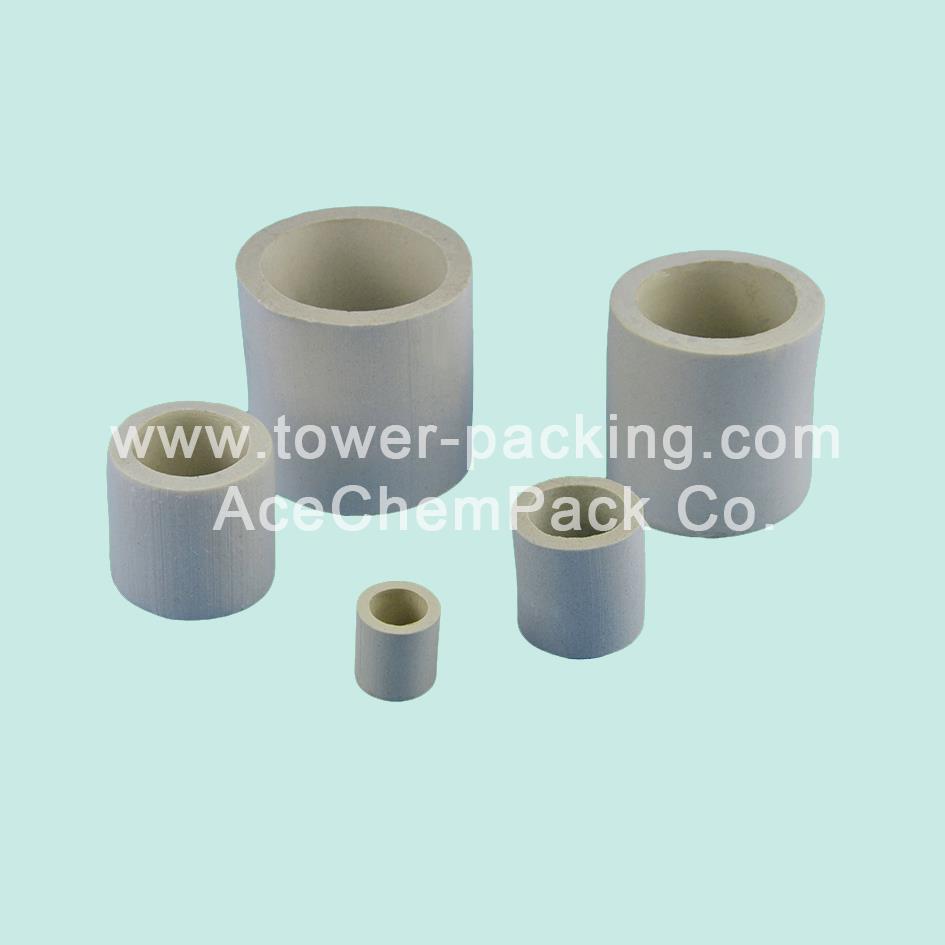

Ceramic Raschig Ring
¥ 0.00Buy now
-

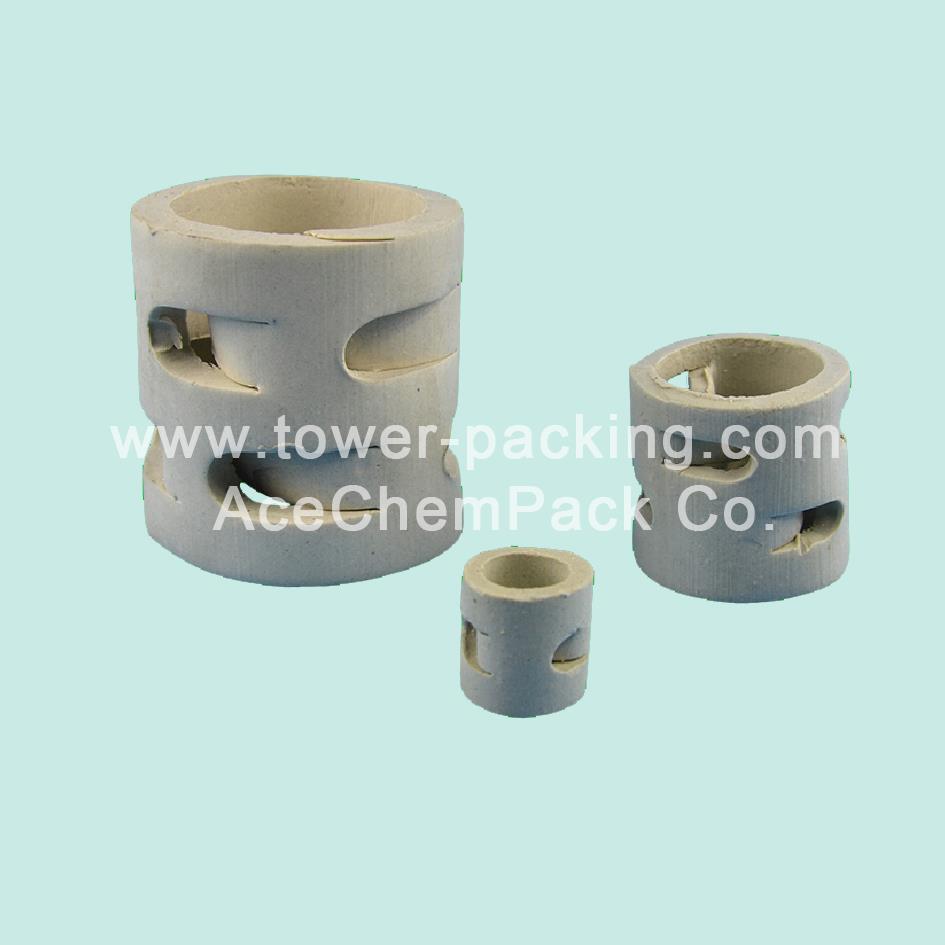

Ceramic Pall Ring
¥ 0.00Buy now
-
Ceramic Berl Saddle Ring
¥ 0.00Buy now
-
Ceramic Cascade Mini Ring
¥ 0.00Buy now
-

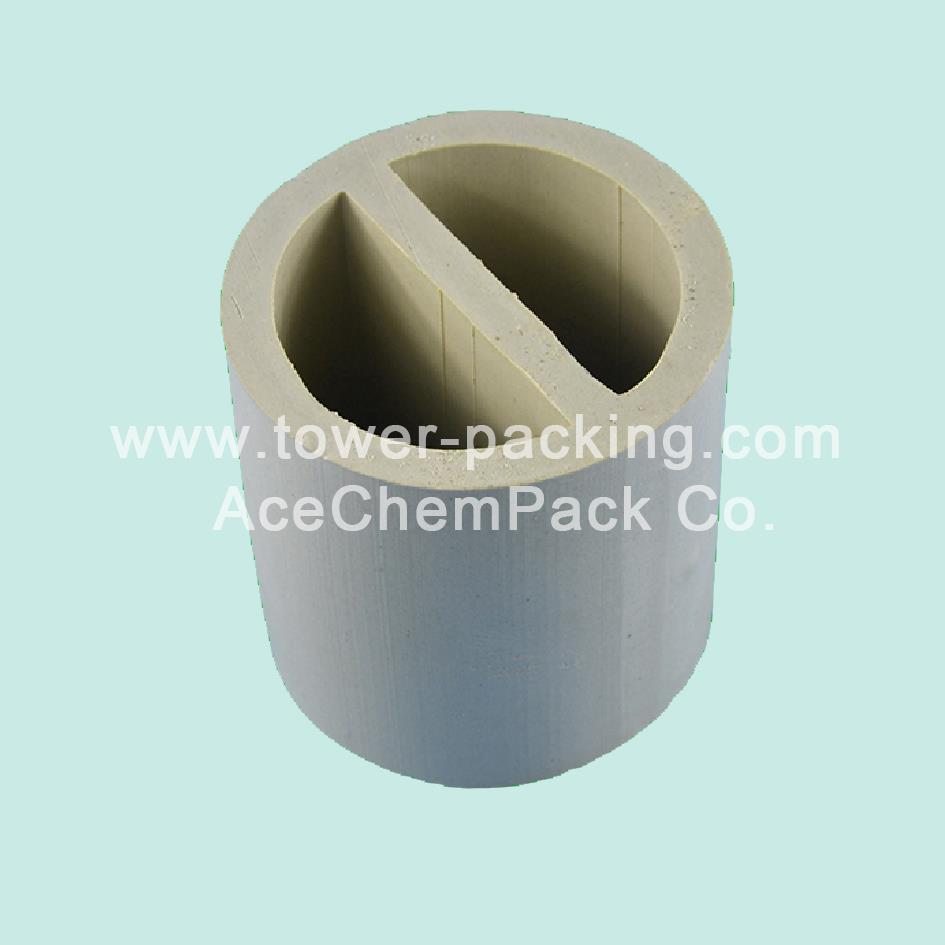

Ceramic Cross Partition Ring
¥ 0.00Buy now
-
Catalyst Bed Supprt Media
¥ 0.00Buy now
-
Ceramic Alumina Ball
¥ 0.00Buy now
Introduction of AceChemPack Ceramic Random Packing Products:
Ceramic Random Packing is also named as ceramic random packing, Ceramic column packing, Ceramic random packings, Ceramic random dump packing, Packed tower packings, in shape of saddles and rings.
Ceramic surface of ceramic random packing can generate extremely thin film, which can promote mixing of liquid and vapor and generate little pressure drop at the same time. The surface of ceramic packing could promote wetting and keep liquid hold-up to a minimum. So chance for the system to be overheated, polymerize and coke could be minimized.
AceChemPack can offer ceramic random packing with a glazed construction to enhance capacity and reduce porosity. These column ceramic packing typically find their application in processes requiring high temperature and chemical corrosion resistance.
Ceramic Random tower packing list(column packing):
Ceramic Intalox Saddle Ring, Ceramic Super Intalox Saddle Ring, Ceramic Cascade Mini Ring, Ceramic Pall Ring, Ceramic Cross-Partition Ring, Ceramic Y Form Ring, Ceramic Berl Saddle Ring, Ceramic Oval hole Chain, Ceramic Raschig Ring, Ceramic Y Chain, Catalyst Bed Support Media (inert ceramic ball) and other ceramic column packings.
Application
Ceramic Random Column Packing is highly suitable for the conditions of higher temperature and lower temperature and can be much more resistant to all kinds of organic acid, inorganic acid and solutions except for the hydrofluoric acid than metal packing. Ceramic Random Packing/Column packing is widely used in drying tower, absorbing tower and cooling tower in the fields of chemical, petrochemical etc industries.
Ceramic packing rings are widely used in refineries, chemical engineering, acid plants, gas plants, oxygen plants, steel plants and pharmaceutical plants. Ceramic packing rings are mainly used as linings of reaction vessel in washing towers, cooling towers, reclaiming towers, desulphurization towers, drying towers and absorbing towers. They also be used as lining bricks in anti-corrosion pools and channels.
Chemical Composition
Composition | Value | Composition | Value |
SiO2 | >69% | CaO | <0.25% |
Al2O3 | 15-25% | MgO | <0.2% |
SiO2+Al2O3 | >92% | K2O+Na2O | 2-4% |
Fe2O3 | <1% | Other | <1% |
Properties
Item | Unit | Value |
Specific heat | KJ/Kg | 840-900 |
Acid Resistance | % | 99.98 |
Density | Kg/m3 | 2300-2400 |
Water absorption | % | <0.2 |
Hardness | Mohr Scale | 7-8 |
Shock strength | Kgf.cm/cm2 | 1.0-1.5 |
