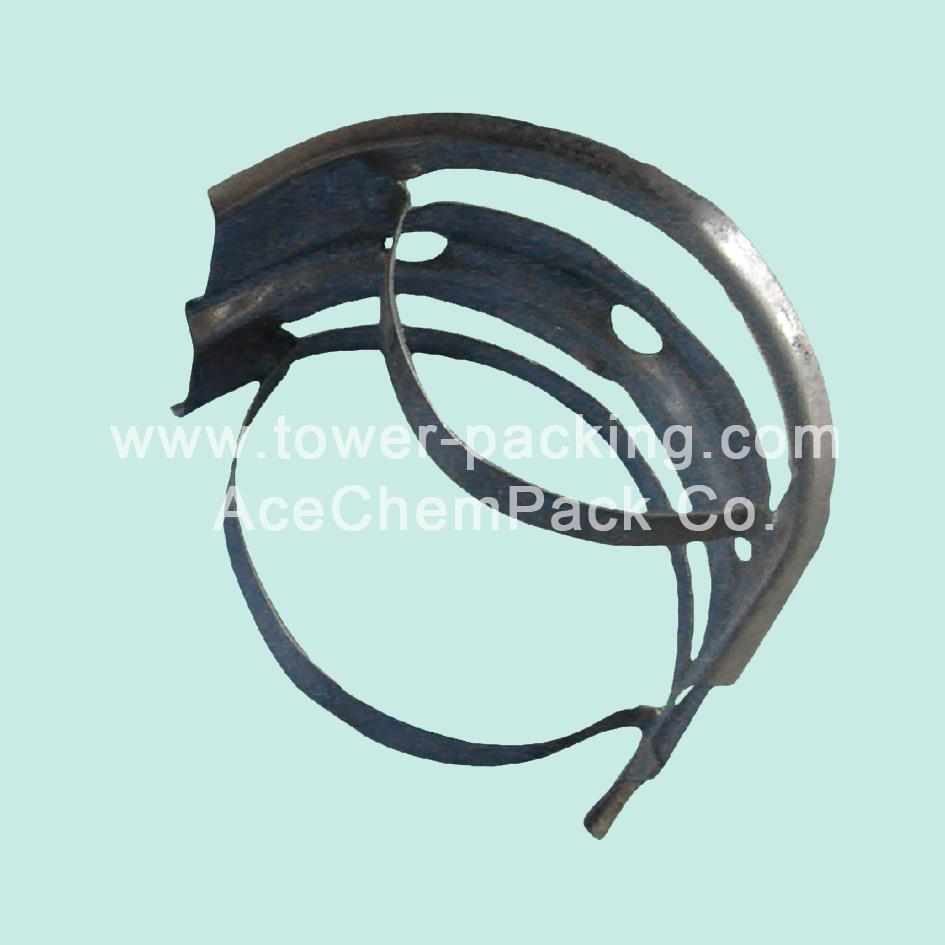

Metal Nutter Ring
AceChemPack Metal Nutter Ring is a new developed type of random packing. Metal Nutter Ring has excellent performance in terms of high flux, low-pressure drop, high mass transfer efficiency and good operating flexibility.
Features:
- • Excellent mechanical strength.
- • Improved efficiency due to lateral liquid diffusion and surface film renewal
- • Outstanding surface utilization in mass and heat transfer applications.
- • Shorter packed bed heights
- • Maximum piece-to-piece contact with minimal nesting
- • High strength to weight ratio allows up to a 15 meters bed height
- • Consistent performance due to uniform randomness
Material: Stainless steel, carbon steel, aluminum, copper and other alloy.
Specifications:
|
Type |
Quantity n/m³ |
Specific Surface (a) m2/m3 |
Free Volume (ε) m³/m³ |
|
0.7 |
167400 |
226 |
0.97 |
|
1.0 |
67100 |
168 |
0.97 |
|
1.5" |
26800 |
124 |
0.97 |
|
2.0 |
13600 |
96 |
0.98 |
|
2.5 |
8800 |
83 |
0.98 |
|
3.0 |
4200 |
66 |
0.98 |
* Thickness of Metal nutter ring could be specified by customer.
