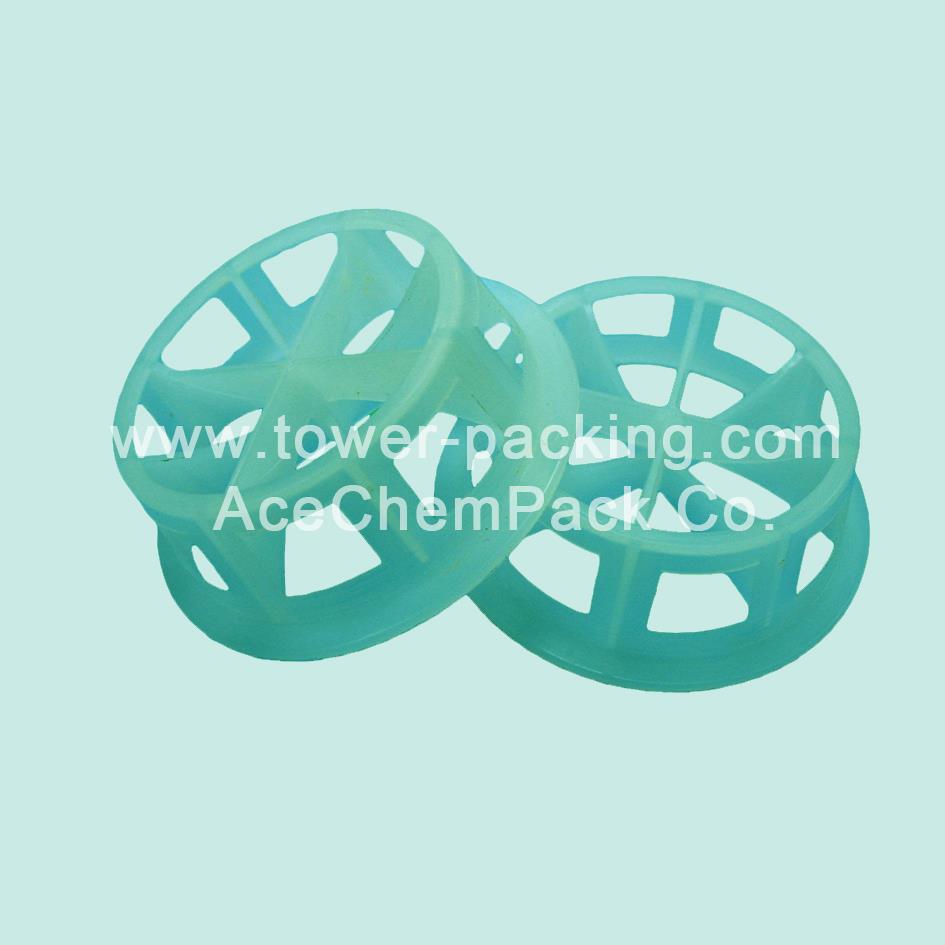

Plastic Cascade Mini Ring
AceChemPack Plastic Cascade Mini Ring(also called CMR) is a kind of advanced packings which is made of heat resistant and chemical corrosion resistant plastics, such as PE, PP, RPP, PVC, CPVC,PVDF PTFE,PFA and Teflon. So it is economical and has versatile industry standard with well-known performance characteristics.
Application:
· Absorption and stripping services
· Many environmental application
Performance:
High Capacity and Low Pressure Drop
· Low aspect ratio increases capacity and reduces pressure drop. The preferred vertical orientation of the packing axes allows free gas flow through the packed bed.
· Low pressure drop and high capacity allows smaller column diameter and blower sizes in new installations.
· Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
Fouling Resistant
· Open structure and preferred vertical axis orientation inhibits fouling by allowing solids to be more easily flushed through the bed by the liquid.
High Mechanical Strength
· Ring and spoke construction and preferred vertical orientation provide high mechanical strength, which allows use in deep beds.
Material: PE, PP, RPP, PVC, CPVC, PVDF, PTFE, PFA and Teflon etc.
Specification of Plastic Cascade Mini Ring:
Size Dia.mm |
Quantity n/m³ |
Bulk Density kg n/m³ |
Specific Surface (a) m2/m3 |
Free Volume (ε) m³/m³ |
D16 |
299136 |
135.6 |
370 |
0.85 |
D25 |
81500 |
65.2 |
228 |
0.90 |
D38 |
27200 |
54.5 |
132.5 |
0.91 |
D50 |
10740 |
49.2 |
114.2 |
0.92 |
D76 |
3420 |
63.5 |
90 |
0.92 |
D100 |
1680 |
40 |
98 |
0.95 |
More size of plastic cascade mini ring could be offered according to customer’s request.
