AceChemPack Structured Packing

Introduction of AceChemPack Structured Packing Products:

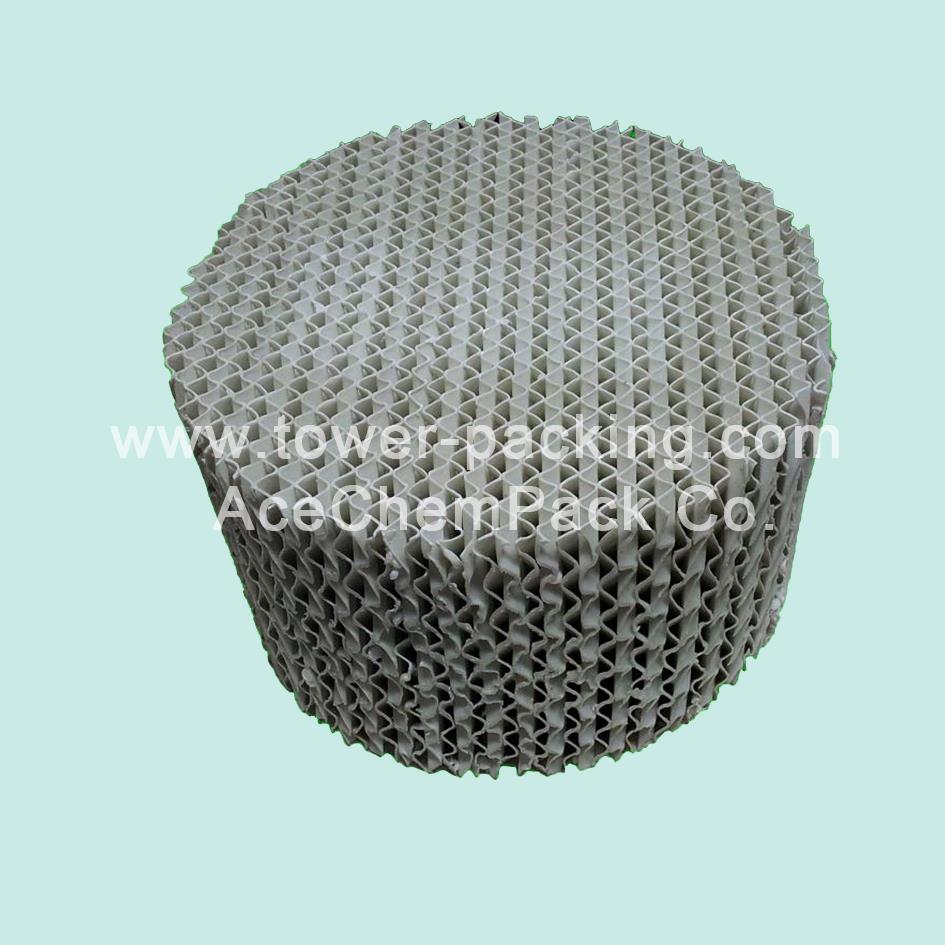

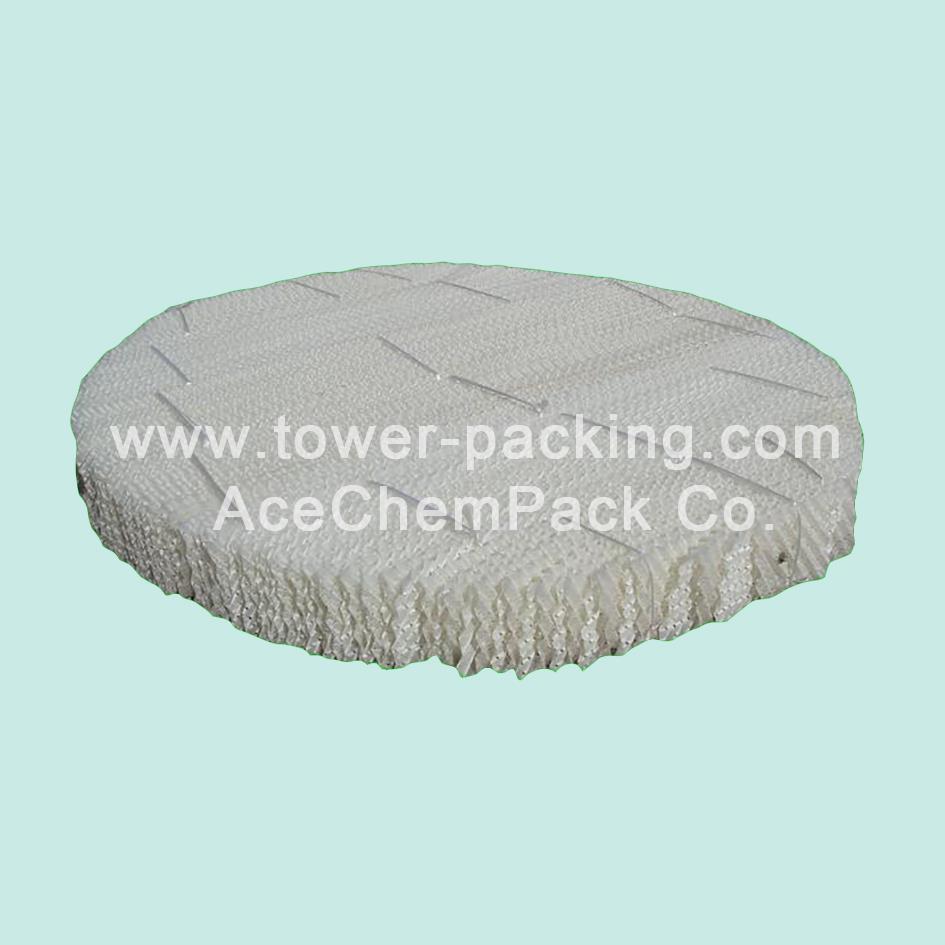

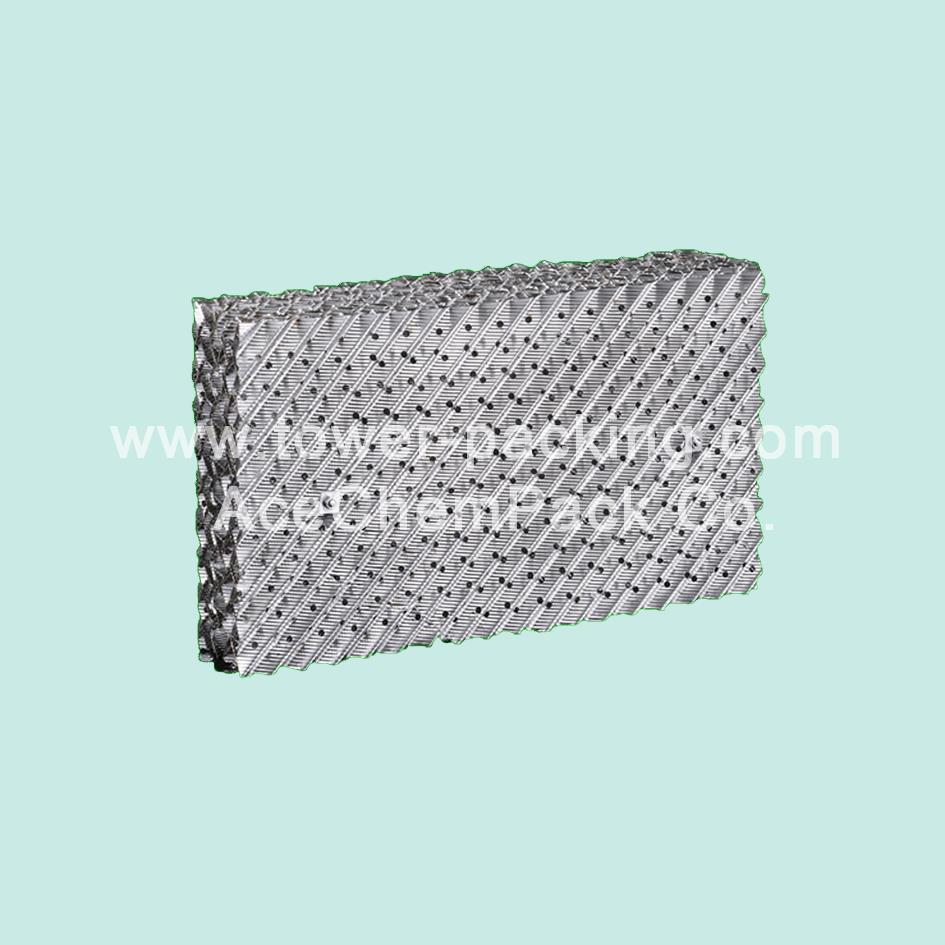

AceChemPack Structured packing is formed from vertical sheets of corrugated thin gauge ceramic / metal/ plastic with the angle of the corrugations reversed in adjacent sheets to form a very open honeycomb structure with inclined flow channels and a relatively high surface area. To simplify installation, it is delivered in preformed slabs or segments that are sized to fit through the vessel manholes. A high surface area will only provide efficient mass transfer if it is effectively used to increase vapor-liquid contact and therefore a variety of surface enhancements are available to promote liquid spreading over the packing surface. The low resistance to vapor flow together with efficient use of available surface tends to give structured packings (structured column packings) significant performance advantages over random packings (random column packings) in high vapor rate/low liquid rate systems.

AceChemPack Offers two performance-improving structured packings (structured column packings): AceChemPack Corrugated Structured Packing, fabricated from ceramic, sheet metal or engineered plastics with normal type as 64x/y, 125x/y, 250x/y, 250y HC, 252y plus, 350x/y, 350y HC, 450x/y, 452y plus, 750x/y, 1T, 2T, 3T, And wire gauze packing with normal type as BX and CY

AceChemPack have many experience supplying structured packing for big, medium, small diameter towers, we also have specified small diameter products for pilot towers.

Materials: Metal, Plastic and Ceramic
